LSquare Standing Seam

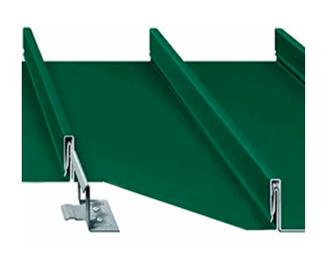

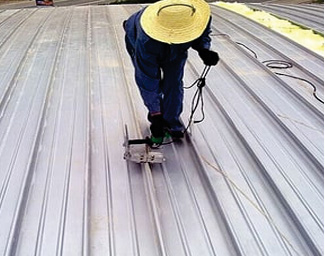

Comprising of sheets joined together with a double-lock standing seam and a uniquely designed clip formed into the seam at the building site in a pattern that requires no through fasteners or holes. The panels are joined and sealed together by a portable electric seamer. The LSquare Leak standing sheets are custom rolled to any transportable length, maximum upto 12 meters. However, our specialized service of ‘On-site Roll Forming’ enables single length sheet up to 40 meters long, without end laps.
Features:

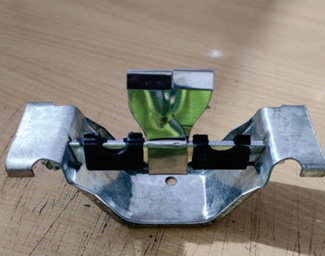

- Use of specially designed, proprietary concealed clips for fixing, leads to a puncture free roof, ensuring no leakages through fastener holes.
- Sheets in long lengths, far beyond transportable lengths made available due to feasibility of site rolling.
- End laps which have potential for water ingress, eliminated by use of single sheet from eave to ridge.
- Moveable tabs in clips accommodate roof movement with daily and seasonal temperature changes, without sacrificing structural integrity.
- Leak-proof side laps are possible by machine seaming the edge through a full 360° Faster roof installation with reduced operator fatigue possible by use of compact, heavy-duty portable seaming machine.
- Excellent geometrical properties due to high profile depth and intermediate stiffening ribs, enables span of more than 2 meters for roofing.
- Raised seam provides deeper roof drainage and low roof pitch.
This Special system comes with several unique features :
- A world-class system with Interlocking Standing Seam Roof panels, which provide long-term superior weather tightness.
- Fully Seamed Roof Uniquely profiled and seamed ridge cap for enhanced weather tightness and rigidity at roof apex
